Sheet Metal Fabricators

Sheet Metal Fabricators are manufacturers that use a wide range of tools to transform flat sheets into products. They often utilize a variety of processes including laser cutting, punching and folding. These methods are used for a variety of applications like furniture, exercise equipment, stairwell railing and balustrades and parts in off-road vehicles.

How It Works？

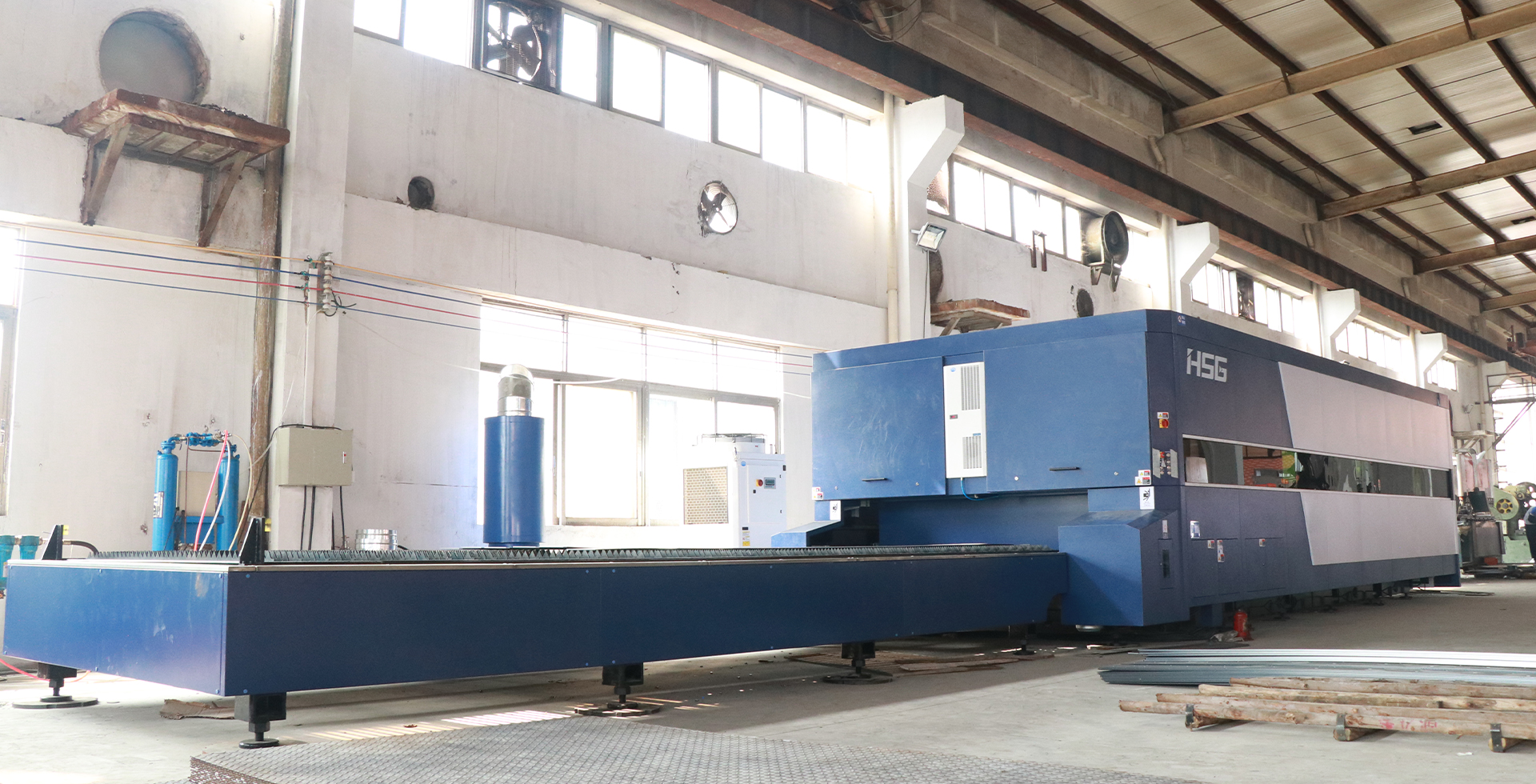

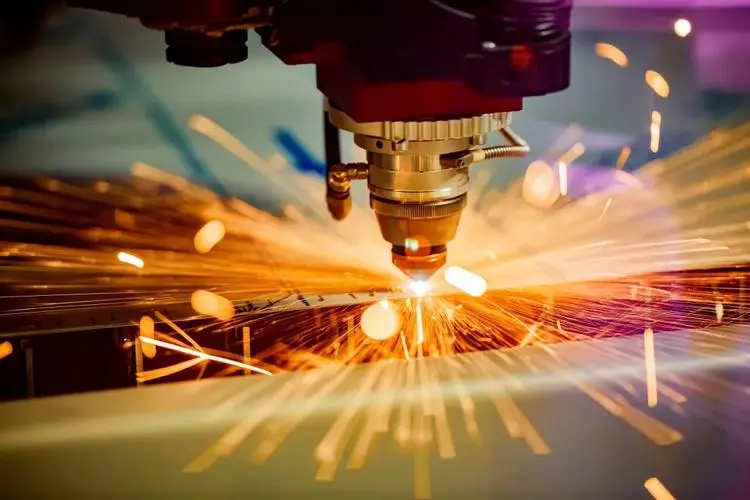

The first step in the process of sheet metal fabrication is blanking. The material is procured and the shape is defined, usually in CAD or CAM software. Once the desired shape is set, it’s cut. This can be done with a laser, plasma, waterjet or shear.

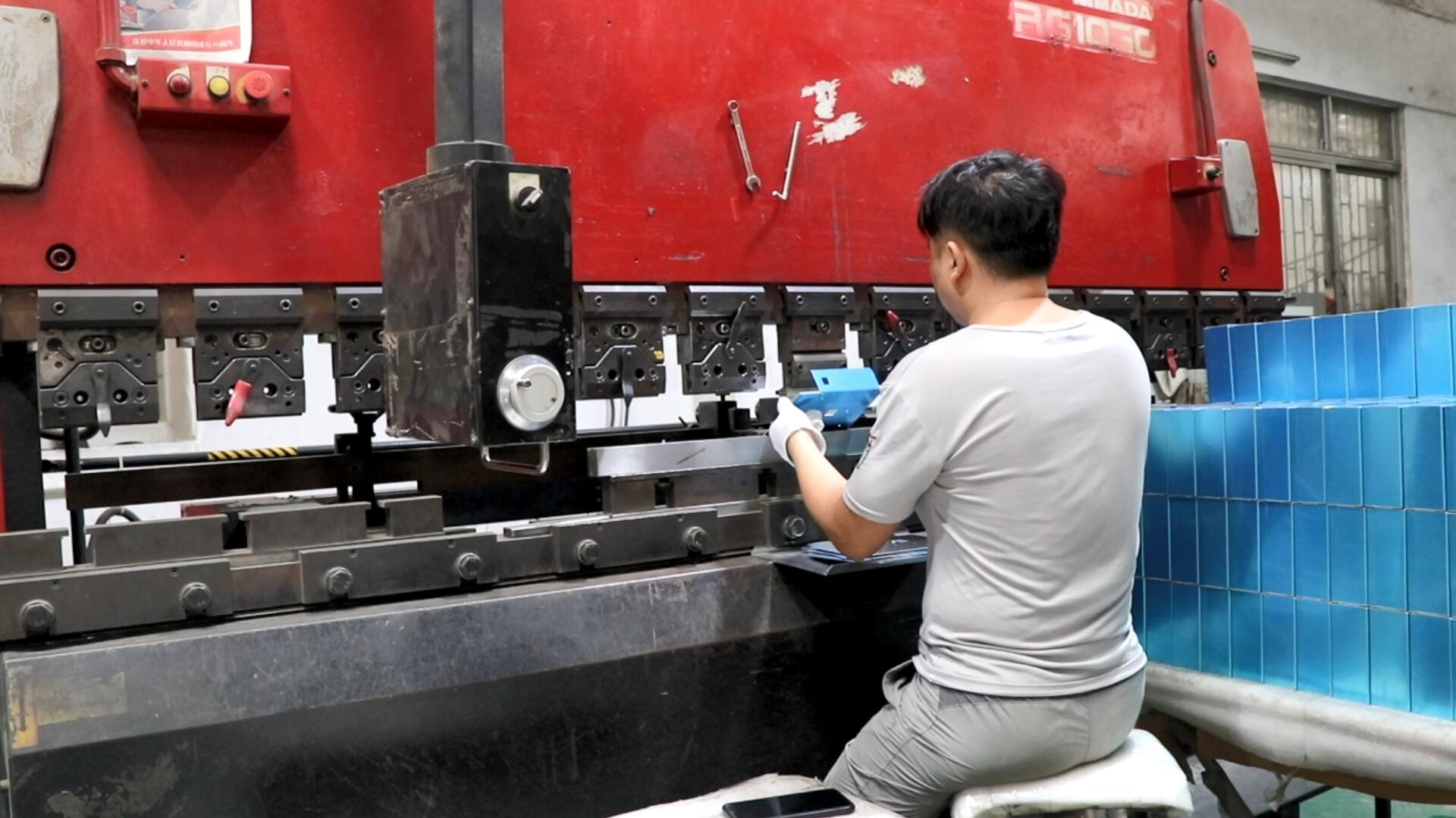

▼Bending

The next step in sheet metal fabrication is to bend the piece into a desired shape. This can be achieved by a bending brake or a sheet metal brake, which is a machine that allows for the bending of sheet metal.

▼Relief Cuts

Another important step in sheet metal fabrication is to use a relief cut. This is a special incision on either side of the part that helps relieve stress on the surface. This can be particularly helpful with a bent product because if there is too much material on one side of the bend, it may be difficult to keep the part oriented properly.

▼Fastening

Whether you need a single part or a large assembly, it is important to choose the correct fasteners for the job. They should fit the part perfectly and be secure without causing excessive movement or damaging the finished product. Using the right fasteners can help ensure a high quality product and reduce downtime.

Sheet metal fabricators produce components from a variety of materials, typically steel and aluminium. They work with a range of specialised techniques, including stamping, bending, cutting, blanking, shearing and laser cutting to create parts with precise dimensions.

▼Bending & Relief Cuts

One of the most common fabrication processes is bending. Sheet metal can be bended and formed into a number of shapes, but there are certain areas of the material that are particularly vulnerable to deformation or tearing. This is where a relief cut can help, as it relieves the stress that may be building up in these areas and adds stiffness to the part.

▼Rolling & Extrusion

Rolled metal is one of the most commonly used sheets in sheet metal fabrication. It is a versatile process that can produce a range of products from discs, stampings, wheels and rims to tubes and pipes.

Cold rolling, which is often used for thinner sheet metal gauges, produces a balanced thickness that is easier to form and maintain than hot rolling, which can result in uneven stress concentrations. This can cause a variety of issues with the finished product, which is why it’s a good idea to opt for cold rolling over hot rolling when possible.

▼Assembling

Assembling is a critical step in the manufacturing process, and it involves joining a range of disparate pieces together using fasteners like bolts and rivets. Assembling also involves a number of processes, such as welding, crimping and brazing.

How to Build a Sheet Metal Box？

A Sheet Metal Box is a simple and sturdy way to store small items. These boxes are available in different sizes and are usually made from stainless steel or brass. They also come with a hinged lid and are made from thicker material than a regular wire basket, which makes them more rigid and durable.

The first step is to cut the sheet metal pieces for the box. You need to make sure that the dimensions of your piece are correct, so measure carefully. This will make it easier to fold the metal into a box.

Now that your piece is cut, it is time to use a sheet metal brake to fold the sheet into a box shape. To do this, first mark out equal squares on each corner of the piece. These will become the flaps of your box.

Next, insert one of the flaps into the bending brake, lining up the bending line that you marked earlier. This will help to raise the flaps of your box up, creating flush corners with no grain showing.

Repeat this process on all four flaps of your box. Once you have finished, it's time to bend the box up.A manual finger brake lets you create boxes and pans that you can't make with a straight brake. These heavy-duty machines feature counterweights and torsion systems that take the fatigue out of bending, even at full capacity. They come in a variety of sizes, from a 2-foot, 16-gauge machine to a 13-foot 22-gauge model.

Tips for Designing a Sheet Metal Enclosure

A Sheet Metal Enclosure is an essential part of any electronics product. It protects the electrical components from weather, humidity, and other elements and also improves performance. There are several factors to consider when designing an enclosure, including material selection, thickness, shape, and flange length.

Materials: Choose a material that is lightweight, easy to weld, and can withstand corrosion. Stainless steel, aluminum, and galvanized steel are popular choices for this application.

Weight Constraints: For a small, portable product, you’ll want an enclosure that’s light enough to transport and strong enough to support the weight of all of your electronics. The best choice of material for these requirements is aluminum, which weighs about 70% less than steel or GI.

Bend Radii: Whether you’re designing a small, lightweight enclosure or a large, heavy one, you need to consider the minimum flange length for each bend. This will help you to ensure that your design can be formed accurately.

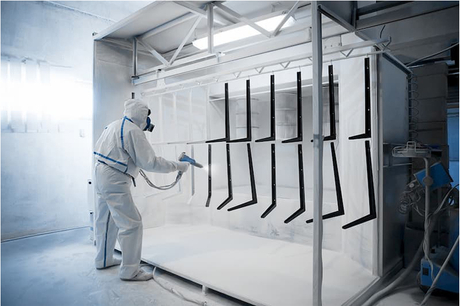

Choosing the Right Finish: The final finishing of your metal enclosure will impact both the look and performance of your product. Zinc plating is a good option for protecting the metal from corrosion, while anodising or paint will add more color and protection.

Labeling and Graphics: Digital printing and silkscreening are both finishing techniques that can help to clearly label your enclosure. This will make it easier to identify ports, switches, connectors, and more.

These methods are great for enhancing the aesthetic appeal of your product while also making it easy to find and identify specific features. They’re also an excellent way to create graphics for your company logos and artwork.
